Sol / Pump

This function is used to spray disinfectant.

Disinfectant can be sprayed only when both functions are activated.

Below, the method of dispensing the disinfectant solution is explained in order.

---

Executing the SOL function

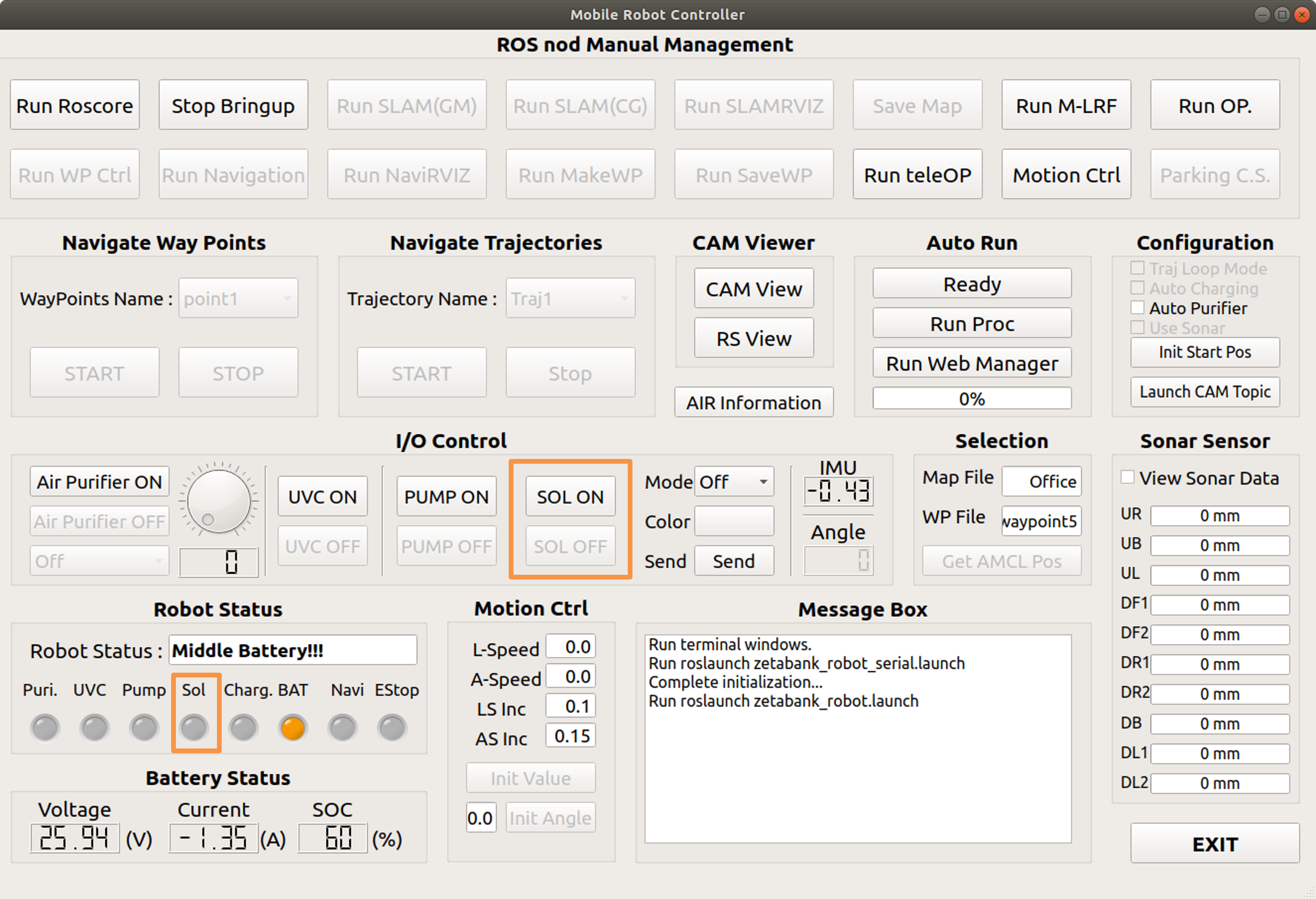

• When the SOL ON button is pressed, the sol on button is deactivated and the sol off button is activated.

• The LED below the Sol turns green.

---

• The phrase mode:Sol is printed in the terminal.

---

Executing the PUMP function

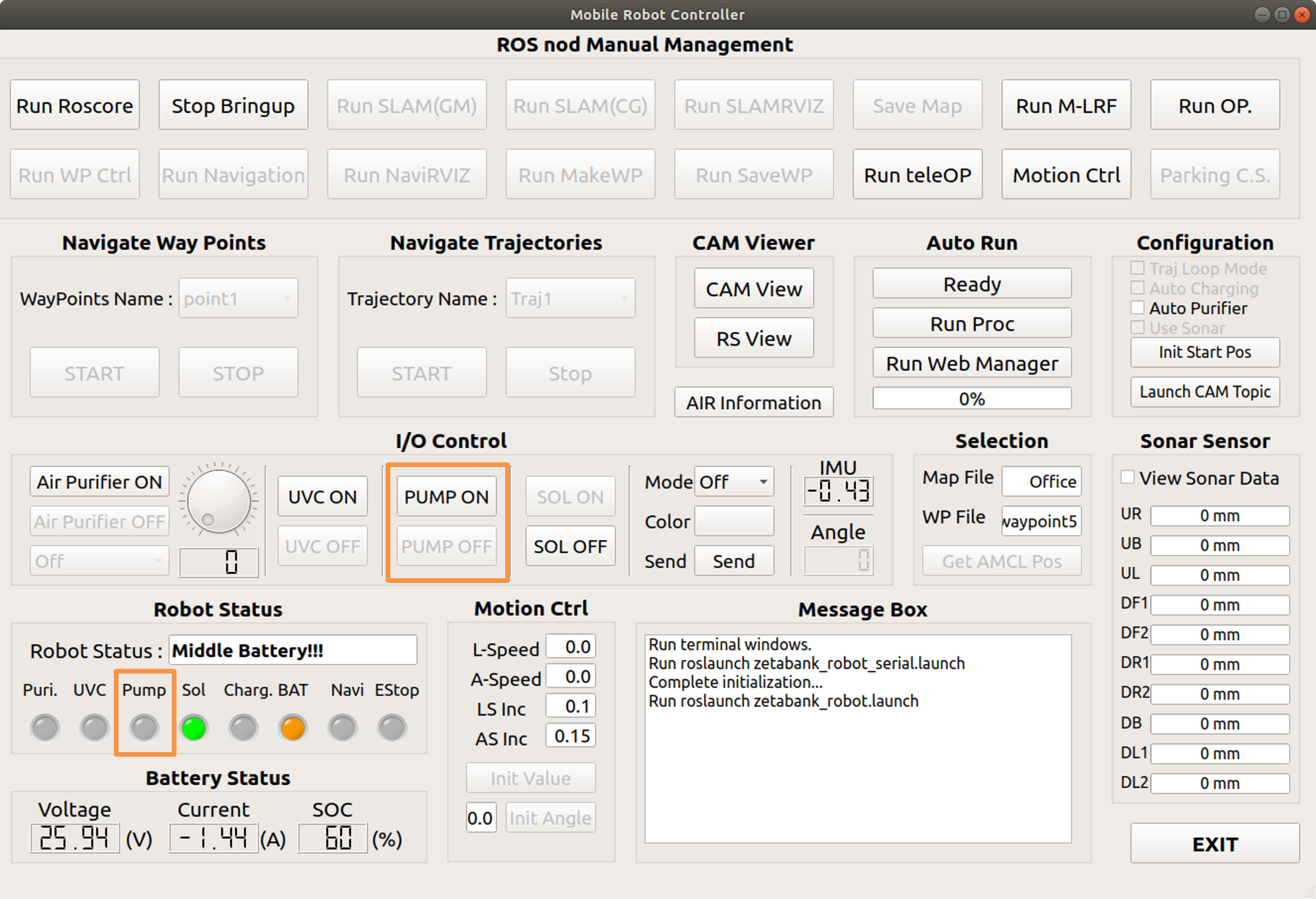

• When the PUMP ON button is pressed, the sol on button is deactivated and the sol off button is activated.

• The LED below the Pump turns green.

---

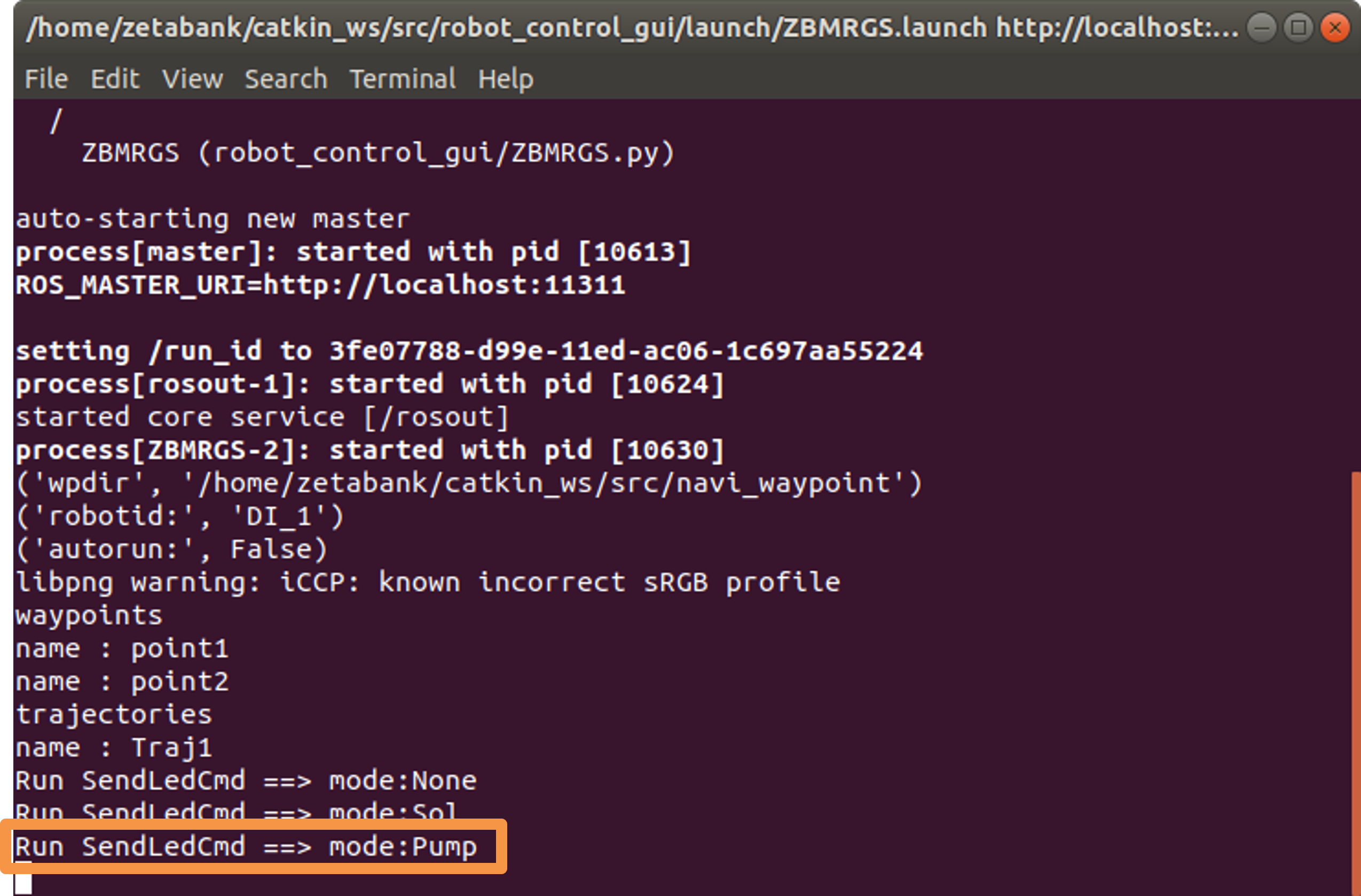

• The phrase mode:Pump is printed in the terminal.

• If this process is executed, disinfectant spraying will begin.

---

Dispensing process

• Run the dispensing process in reverse order.

• Stop using the pump first.

---

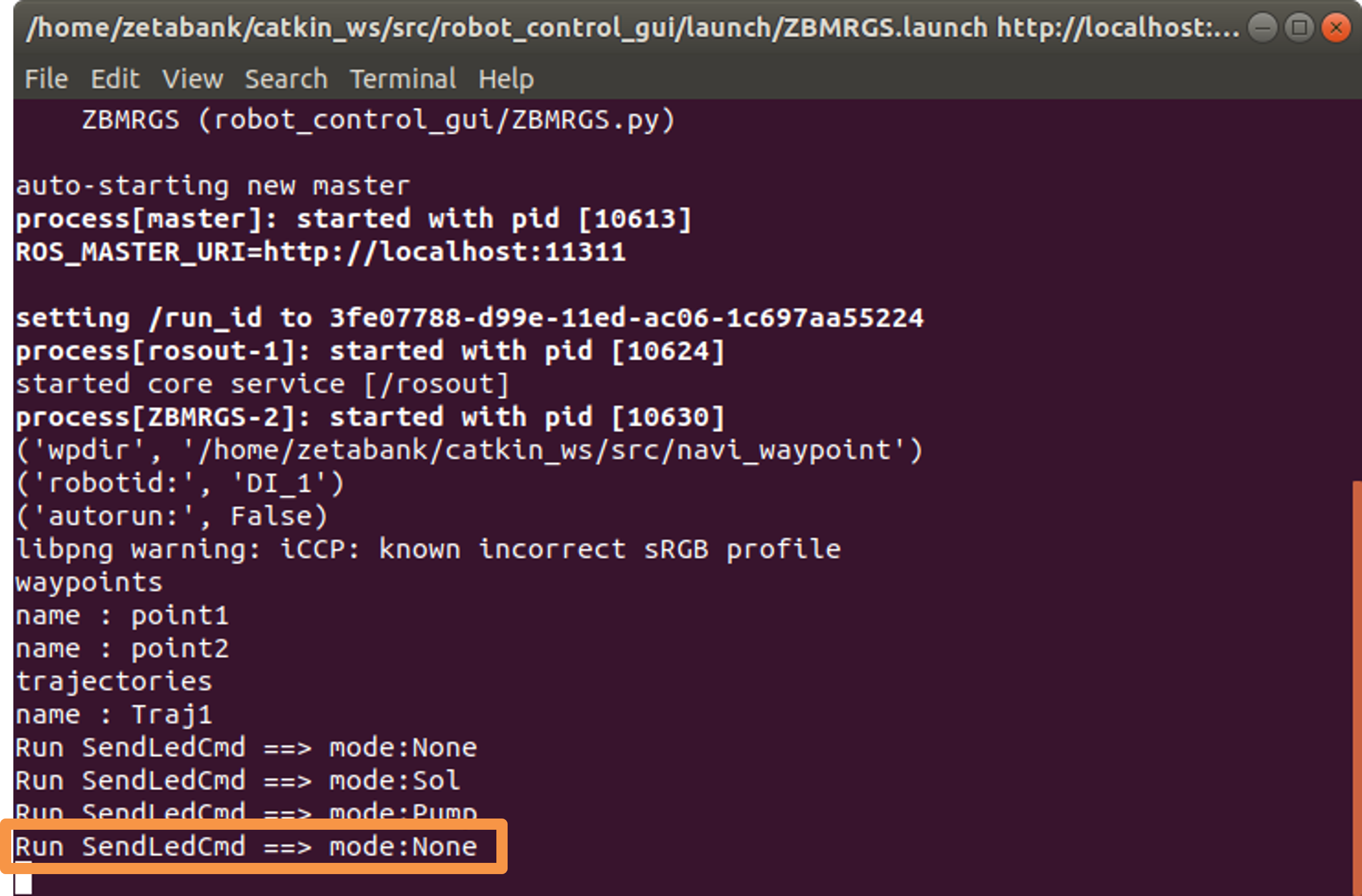

• When the use of the sol function is stopped, the whole process is finished.

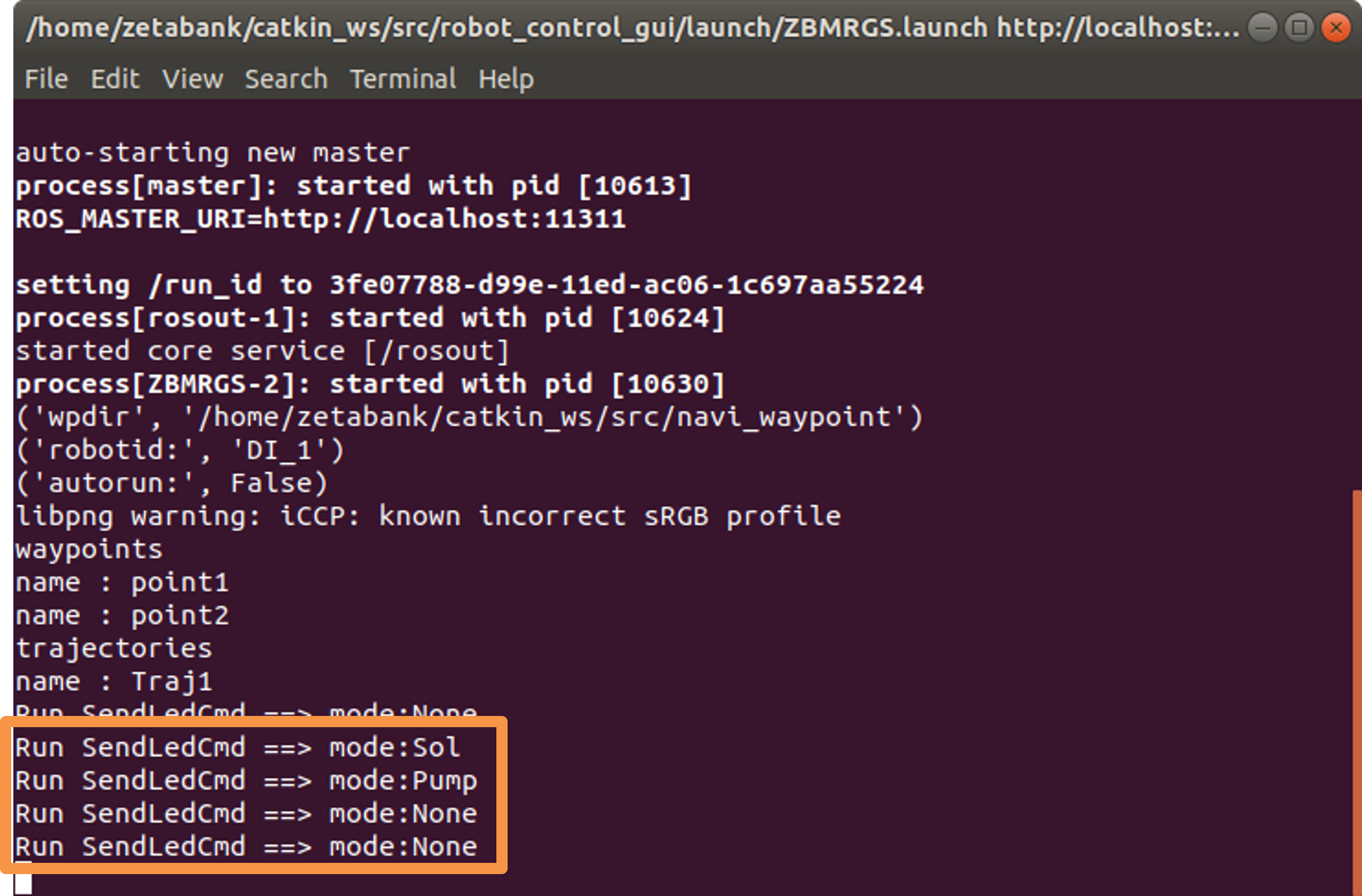

Start order : SOL ON => PUMP ON

Stop order : PUMP OFF => SOL OFF
